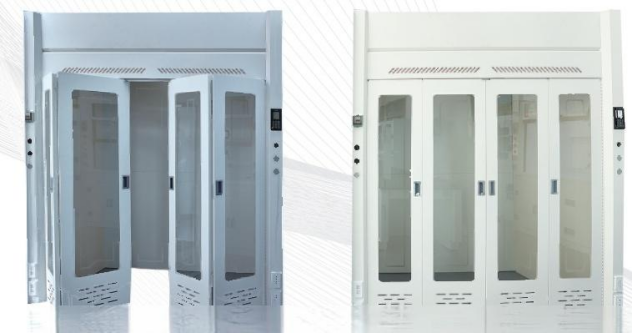

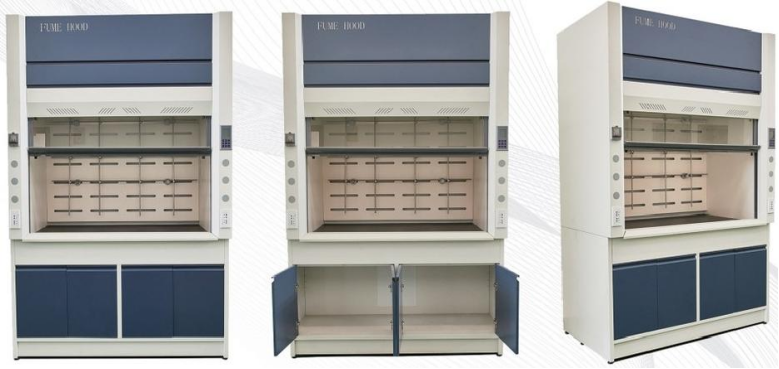

全钢通风柜
通风柜材质和结构 | |
尺寸 | L1200/1500/1800*D800/850*H2350mm |
主体框架 | 左右旁板、前钢板、后背板、顶板及下柜体均采用1.0mm厚马钢一级冷轧镀锌钢板, 德国进口全自动数控激光切割机下料,折弯采用全自动数控折弯机一次性一体折弯成 型,喷涂表面经环氧树脂静电流水线自动化喷涂 |
内衬板\导流板 | 采用实芯抗倍特板(5mm厚)具有良好的防腐蚀、化学抗性。导流板固定件使用PP 优质材质制作一体成型 |
移动视窗 | 5mm优质钢化玻璃,门开启高度为700mm,自由升降,移门上下滑动装置采用电梯配 重方式结构,无级任意停留,移门导向装置由抗腐蚀的聚氯乙稀材质构成。移门把手 PP一体成型制作,移门旁边是抗化学腐蚀的塑料包裹,移门的开、闭有橡胶缓冲装置 |
通风柜视窗 | 通风柜正前方全部为玻璃视窗,有良好的可视范围。导流板和内衬材料一致,导流板 支架由非金属材料构成 |
下柜体 | 台面采用实芯理化板(12.7mm厚)耐酸碱,耐冲击,耐腐蚀,甲醛达到E1级别标准 |
连接部分 | 所有的内部连接装置都需隐藏布置和抗腐蚀。没有外露的螺钉。外部连接装置都抗化 学腐蚀,用聚氯乙稀包裹的不锈钢部件与非金属材料 |
排气出口 | 排气出口为圆形,套管连接,减少气体扰流 |
Drilled Holes and Slots create an escape route for debris, dust, gases, and water
Slots clean and de-glaze pad surface for optimum pad coefficient of friction
Drilled rotors improve the appearance of your wheels and provide reduced rotor weight
2-Piece rotors offer great weight savings and provide rapid heat dissipation compared to 1-piece rotors
Vented type of rotors offer much faster heat dissipation
Multi-piston calipers provide clamping force on both sides of the rotor at the same time and uniformly transfer braking force to the brake pads
Caliper pistons are hollow to save weight
Aluminum caliper body allows for exceptional light weight (up to 40% of weight savings) and ensures superior corrosion resistance
Caliper heat-resistant coating prevent cracking and fading
Fixed calipers create friction from the brake pads on both sides of the rotor at time interval
This Street Performance Drilled and Slotted Brake Kit provides increased levels of strong braking. The complete package includes drilled and slotted rotors, premium brake pads and calipers representing the latest racing technology. The calipers are available in various finishes to reflect your individual style. Originally used for serious competitions because of their advanced cooling capacity, drilled and slotted rotors now became popular in street applications for their pure aesthetic value. Whether you have a daily driver or something ready for the show, this Street Performance Drilled and Slotted Brake Kit is what you need to get optimized braking performance.
