大流量在线粒子监测
一、产品概述：

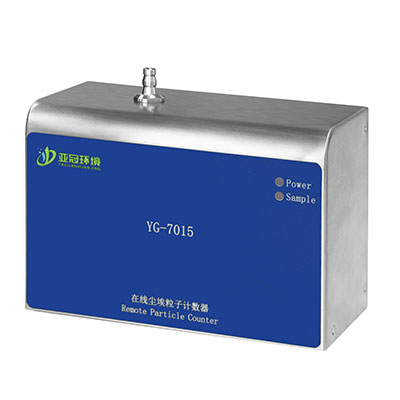

YG-7015系列产品是28.3L/min大流量远程激光尘埃粒子计数器，符合JJF 1190-2008和GB/T 6167-2007的规范要求。粒子计数器以光散射原理为理论基础，应用光电传感技术实现对尘埃粒子粒径及数目的测量计数。
该仪器采用进口半导体激光光源和南理工传感器，能确保灵敏度和精度。其精度高、效率高、方便安装、可连续工作，用于实时在线监测非常稳定可靠。广泛应用于电子、光学、化学、新能源、半导体、食品、化妆品、医药卫生、生物制品、航空航天等领域。
二、产品特点：
●采用进口半导体激光二极管(寿命大于30000小时)，确保灵敏度和响应速度
●采用南理工激光传感器，确保仪器精度
●外置优质独立气泵，静音稳定、寿命长
●有流量自调节功能，确保采样量准确，后期维护方便省心
●公司有专业尘埃粒子计数器标定设备和PSL标准粒子，每台仪器在出厂前都会经过严格标定和测试
三、产品参数：
产品型号 | YG-7015 | YG-7015T | YG-7015TP | ||
触摸屏 | -- | -- | 7寸 | ||
气泵 | 外置独立泵或中央泵 | 内置独立泵 | 内置独立泵 | ||
采样流量 | 28.3L/min（1CFM）±5% | ||||
激光光源 | 进口半导体激光二极管（寿命大于30000小时） | ||||
传感器 | 南理工传感器 | ||||
流量调节方式 | 流量自调节 | ||||
粒径通道 | 0.5μm，5.0μm（可扩展4通道） | ||||
重复误差 | ＜±10%FS | ||||
粒径分布误差 | ≤±30% | ||||
浓度示值误差 | 0.5μm≤±30%FS | ||||
最大采样浓度 | 35000颗/升 | ||||
自净时间 | ≤10min | ||||
通讯方式 | RS485 @ ModbusRTU（支持定制化通讯协议） | ||||
校准规范 | JJF1190-2008,GB/T6167-2007 | ||||
工作环境 | 温度0∽40°C 湿度10%∽90%无凝结 | ||||
存储环境 | 温度 -10∽50°C 湿度0∽90%无凝结 | ||||
供电电源 | DC 24V | ||||
最大功耗 | 40W | 40W | 43W | ||
外尺寸 | W182*D86*H120mm
| W273*D140*H151mm
| W273*D140*H151mm
| ||
重量 | 1.4KG | 3.6KG | 3.8KG | ||
外壳材质 | SUS304不锈钢 | ||||
